Full Complement Cylindrical Roller Bearings NU205 Open Seal Type

Name: Full Complement Cylindrical Roller Bearings NU205 Open Seal Type
Brand: MCBB/ Customization/ Any famous brand
Price: 1 USD

Full Complement Cylindrical Roller Bearings NU205 Open Seal Type Manufactures

Brand Name : MCBB/ Customization/ Any famous brand

Model Number : NU205 skf cylindrical roller bearing

Certification : ISO9001:2008

Place of Origin : Jiangsu China

MOQ : 1PCS

Price : negotiation

Payment Terms : L/C, , T/T, Western Union, MoneyGram, Paypal, Payment online, RMB

Supply Ability : 10000pcs/Month

Delivery Time : Within 7days after confirmation

Packaging Details : Waterproof single PP bag+ single color box+ hardness outer carton+ Pallet

Product Name : NU205 single ball bearing roller

Type : Roller

Seal Type : Open

Row : Single

Cage : Steel, Cage, Nylon in optional

Vibration : V1V2V3V4

Contact Now

Full Complement Cylindrical Roller Bearings NU205 Open Seal Type

Description,

Model	nu305 Bearing
Brand	mcbb
Structure	Single row	NU / N / NJ / NF / NUP
	Double rows	NN / NN-K / NNU-K / NNCF / NNCL / NNCS
	Four rows	FC/FCD/FCDP
Precision Rating	P0,P6,P5,P4,P2(ABEC1,ABEC3,ABEC5,ABEC7,ABEC9)
Clearance	C2,C0,C3,C4,C5
Viberation Level	V1,V2,V3,V4
Material	GCr15/GCr15SiMn
Application	Widely used in metallurgy, mining, petroleum, chemical, coal, cement, paper, windpower, heavy machinery, enginnering machinery, port machinery and other industries.
Delivery time	1) 3-5days for samples
	2)10-15days
Payment terms	1) 30%TT in advance,70%balance has to be paid before first shipment.
	2) 100%LC at sight
	3) Western Union
	4) Paypal
	5) other payment terms depend on our discussio

Axial cylindrical roller bearings, Specification,

cylindrical roller bearings NU205 NU305 NU405 NJ N NUP
NU205	25x52x15mm
NU305	25x62x17mm
NU405	25x80x21mm

Full Complement Cylindrical Roller Bearings NU205 Open Seal Type

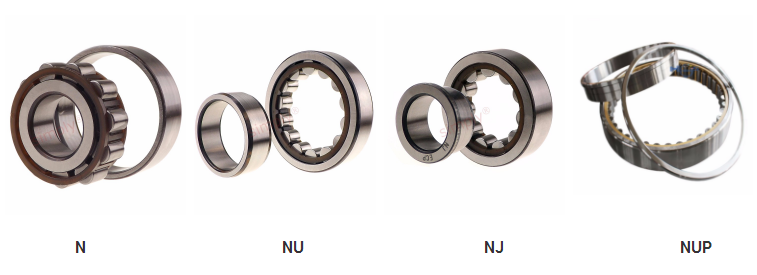

Features,

NU design
The outer ring of an NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of

the shaft with respect to the housing can be accommodated in both directions.
N design
The inner ring of an N design bearing has two integral flanges while the outer ring has no flanges. Axial displacement of the

shaft with respect to the housing can be accommodated in both directions.
NJ design
The outer ring of an NJ design bearing has two integral flanges and the inner ring has one integral flange. These bearings

can locate the shaft axially in one direction.
NUP design
The outer ring of an NUP design bearing has two integral flanges and the inner ring has one integral flange and one non-

integral flange in the form of a loose flange ring. These bearings can be used as locating bearings to locate the shaft axially

in both directions.
The cylindrical roller bearing with a high load capacity, to operate at high speed application, because they use roller as their

rolling elements.

Full Complement Cylindrical Roller Bearings NU205 Open Seal Type

If you need the bearing price list, welcome contact us.
